Sensor Hub: 4-Channel Industrial DAQ Module
Fully Configurable Hardware Interface for Industrial & EV Monitoring 0-120V / RPM / PWM / Thermocouple A versatile, high-precision Data Acquisition (DAQ) module featuring 4 multi-function input channels. These channels are hardware-configured at the factory to meet your specific needs, supporting high-voltage monitoring (120V), high-speed tachometer tracking (30,000 RPM), and professional Thermocouple (J/K type) temperature sensing.
528.00€
- Brand: Shining
- SKU: SENSOR_HUB
- Shipping:
Learn More
IMPORTANT: FACTORY CUSTOMIZATION REQUIRED
This module features 4 universal signal lines that must be hardware-mapped before shipping.
Please specify your required configuration for these 4 channels:
- Single-Wire Options (Uses 1 Channel each):
- DC Voltage: 0 ~ 120V
- Tachometer (RPM): 0 ~ 30,000 RPM (3.3V ~ 30V )
- PWM Capture: 5 ~ 2000us
- Resistance: 0 ~ 50K
- Dual-Wire Option (Uses 2 Channels per probe):
- Thermocouple: Supports J-Type or K-Type probes. (One thermocouple probe occupies 2 of the 4 available signal lines).
Common Configuration Examples
- Full Temperature Mode: 2x Thermocouple probes (Uses all 4 channels).
- EV Testing Mode: 2x Voltage (0-120V) + 1x Thermocouple (Uses all 4 channels).
- Motor Diagnostics Mode: 1x RPM + 1x PWM + 1x Thermocouple (Uses all 4 channels).
Key Features
- Bespoke Hardware Mapping: Internal switching circuits are optimized at the factory for your specific sensor array, ensuring laboratory-grade signal integrity.
- High-Voltage Capability: Specifically designed for EV battery stacks and industrial power systems up to 120V DC.
- Precision Timing: Capture high-speed rotational data and PWM signals with microsecond accuracy.
- Industrial CAN Bus Integration: Dual CAN 2.0A/B ports (1Mbps) for real-time data broadcasting to your vehicle or PLC network.
- Ultra-Low Power: Operating at < 0.6W, making it ideal for long-term remote monitoring and battery-powered applications.
Technical Specifications
| Category | Parameter | Specification |
| Input Channels | Total Physical Lines | 4 Channels (Hardware Customizable) |
| Measurement Options | DC Voltage | 0 ~ 120V (Accuracy: ±0.2V) |
| Resistance | 0 ~ 50k | |
| Speed/Tachometer | 0 ~ 30,000 RPM | |
| PWM Pulse Width | 5 ~ 2000us | |
| Thermocouple | J-Type / K-Type (Requires 2 channels per probe) | |
| Connectivity | CAN Bus | 2x CAN 2.0A/B (1Mbps, Adjustable) |
| Serial Port | 1x RS-232 (Maintenance/Configuration) | |
| Electrical | Input Power | DC 5V ~ 8V |
| Consumption | < 0.6W |
Physical & Environmental Specifications
| Category | Parameter | Specification |

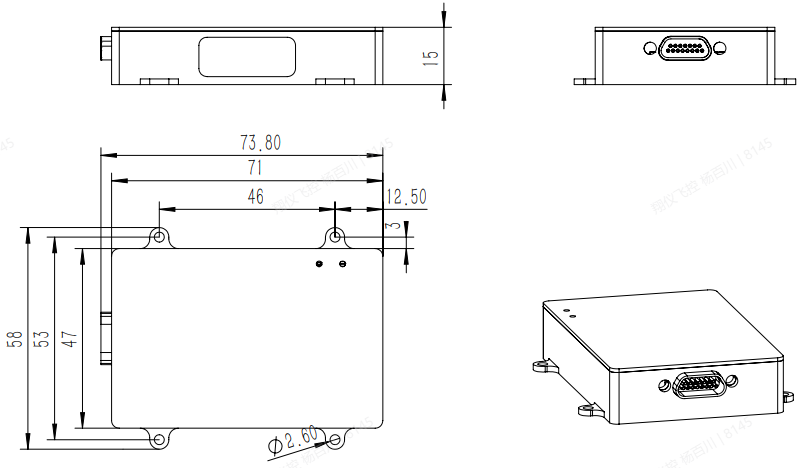

| Physical Dimensions | Size | 74mm x 58mm x 15mm (Ultra-compact) |
| Weight | ~80g (Lightweight for mobile/UAV apps) | |
| Environmental | Operating Temp | -40°C to +85°C (Industrial Grade) |
| Storage Temp | -55°C to +105°C | |
| Humidity | 5% to 95% RH (Non-condensing) | |
| Electrical | Input Power | DC 5V ~ 8V |
| Power Consumption | < 0.6W (Ultra-low heat emission) |
Ordering Template
Please copy and fill this out in your order notes to ensure correct factory calibration:
- Configuration Requirement: * (Example: 2x Voltage channels + 1x K-Type Thermocouple)
- Total Channels Used: [4/4]
