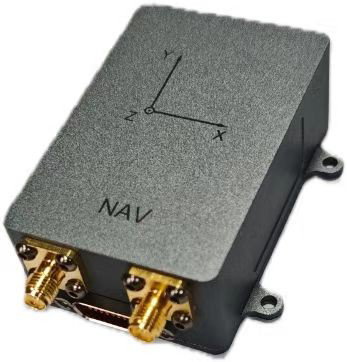

NAV-300 Integrated Navigation System

High-Precision, Industrial-Grade Navigation Core

the NAV-300 is a high-reliability and high-precision industrial-grade integrated navigation system. It provides precise positioning, orientation, and attitude information, making it ideal for navigation and measurement in aviation, maritime, and ground robotics applications


🌟 Key Features

  • Comprehensive Motion Output: Delivers high-frequency and high-precision output of position, altitude, velocity, attitude, and heading through integrated multi-sensor fusion algorithms.
  • Precision GNSS & RTK: Features a built-in multi-system, multi-frequency satellite receiver supporting RTK centimeter-level positioning and dual-antenna heading determination.
  • Navigation in Challenging Environments: Equipped with advanced GNSS-denied navigation algorithms, providing reliable attitude and altitude information even when satellite signals are lost.
  • Integrated Sensor Suite: Includes redundant MEMS Inertial Measurement Units (IMUs), a barometric sensor, and a high-performance satellite receiver.
  • Compact & Robust: Designed for easy integration with a small footprint ($76 \times 58 \times 25\text{ mm}$), weighing only $105\text{ g}$—a true plug-and-play solution.
  • Highly Extensible: The expansion interface allows for the connection of external sensors such as magnetic compasses, backup GNSS systems, and odometers.

📊 Technical Specifications

  • Positioning Accuracy (RMS):
    • RTK Mode: Horizontal: 0.8cm + 1 ppm Vertical : 1.5 cm + 1 ppm
    • Single Point Positioning: Horizontal: 1.5m Vertical :2.5m
  • Attitude & Heading Precision:
    • Roll / Pitch(RMS): ±0.05°
    • Yaw (Heading)(RMS): ±0.2° ( 1m dual-antenna baseline)
  • Inertial Measurement Performance:
    • Gyroscope: ±500°/s
    • Accelerometer: ±16g
  • Data & Communication:
    • Interfaces: RS232/422 and CAN 2.0 A/B
    • Update Rate: default 200Hz, maximum 400Hz
    • Baud Rate: Configurable, with a default setting of 460800bps
  • Electrical & Environmental:
    • Power Supply: DC 11-36 V, <5W
    • Temperature: -40 -- +70℃.
  • Physical Dimensions:
    • Size: 76 x  58 x 25 mm.
    • Weight: 105g



🛠 Application Scenarios

  • UAVs & Manned Aircraft: Precise attitude control and high-frequency navigation data.
  • Ground Robotics: Reliable positioning in urban canyons or indoor-to-outdoor transitions.
  • Marine Operations: Robust orientation and positioning for surface vessels.
